conda env create -f environment.yml
conda activate gee

import ee

ee.Authenticate()

ee.Initialize()

embeddings = ee.ImageCollection('GOOGLE/SATELLITE_EMBEDDING/V1/ANNUAL')

pt = ee.Geometry.Point(-71.0565, 42.3555)
image = embeddings.filterDate('2023-01-01', '2024-01-01').filterBounds(pt)

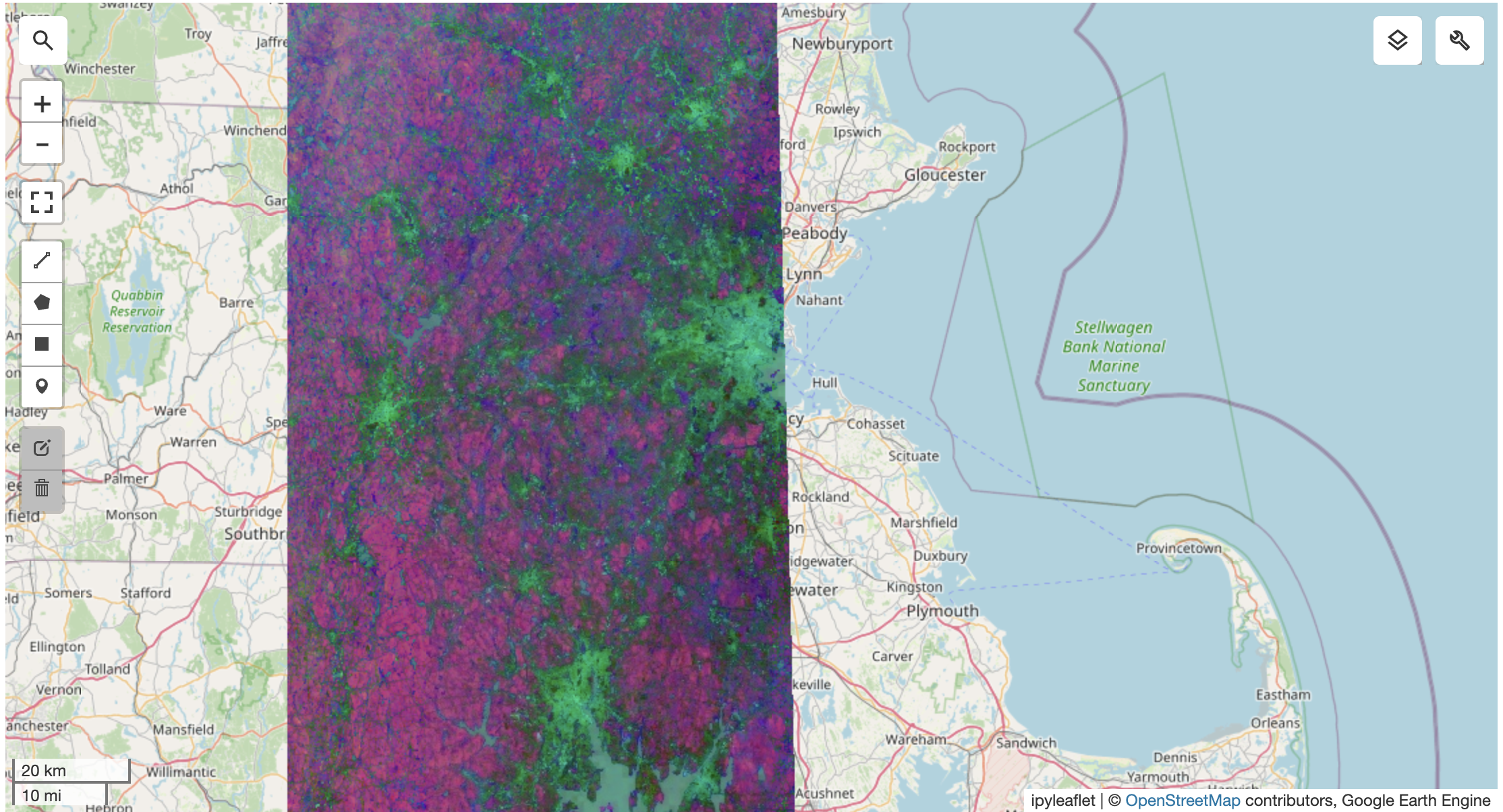

# visualize three axes of embedding space as RGB
vis = {'min': -0.3, 'max': 0.3, 'bands': ['A01', 'A16', 'A09']}

import geemap.foliumap as geemap

m = geemap.Map(center=(42.3555, -71.0565), zoom=9)
m.addLayer(image, vis, '2023 Embedding')

m

import pandas as pd
import geopandas as gpd

# read in sustainbench data
datapath = 'data/'
filename = 'lsms_asset_diff_indices.csv'
df_pov_change = pd.read_csv(datapath+filename)
df_pov_change.head()

# summarize number of datapoints by year
df_pov_change.value_counts('year.x')

year.x
2010    563
2005    378
2008    300
2011    235
2009    189
Name: count, dtype: int64

df_pov_change.value_counts('year.y')

year.y
2015    697
2013    378
2012    300
2009    189
2016    101
Name: count, dtype: int64

datapath = 'data/'
filename = 'dhs_final_labels.csv'
df_pov = pd.read_csv(datapath+filename)
df_pov.head()

df_pov.value_counts('year').sort_index()

year
1996      343
1997      585
1998      992
1999      894
2000     5107
2001      893
2002      495
2003     4850
2004     3129
2005     4246
2006     3152
2007     5479
2008     6583
2009     2425
2010     9259
2011     4814
2012     5379
2013     4532
2014     6559
2015    31839
2016     4482
2017     6406
2018     3826
2019     1375
Name: count, dtype: int64

# convert from pandas to geopandas
gdf_pov = gpd.GeoDataFrame(
    df_pov, geometry=gpd.points_from_xy(df_pov.lon, df_pov.lat))
gdf_pov.crs = "EPSG:4326"
gdf_pov.head()

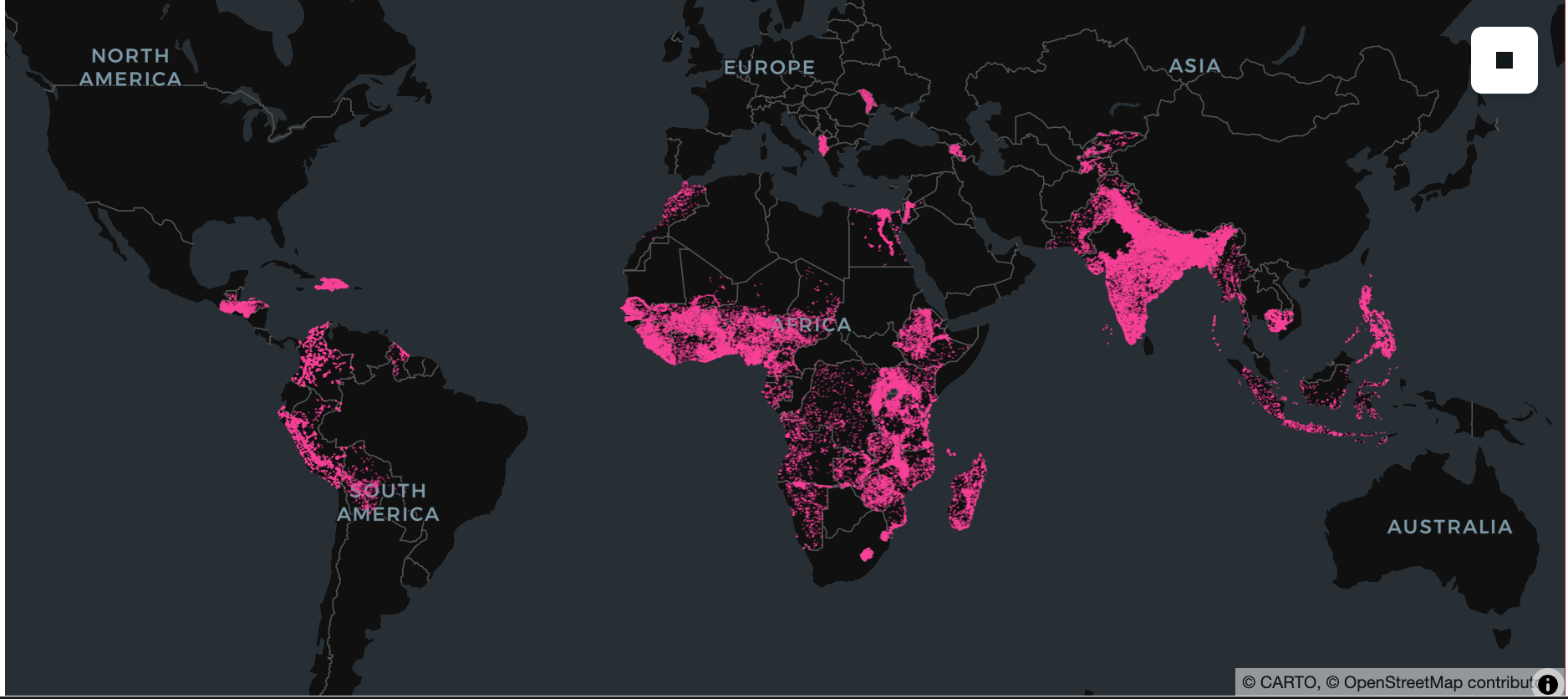

# visualize dhs data points on map with lonboard and geopandas
from lonboard import viz
viz(gdf_pov)

Map(basemap_style=<CartoBasemap.DarkMatter: 'https://basemaps.cartocdn.com/gl/dark-matter-gl-style/style.json'…

# filter to just data from 2017 onwards
gdf_pov_recent = gdf_pov[gdf_pov['year'] >= 2017]
gdf_pov_recent.head()

# drop some columns not needed
# drop lon, lat
# filter out rows that have NaN for asset_index
gdf_pov_recent = gdf_pov_recent.drop(columns=['lon', 'lat', 'adm1fips', 'adm1dhs','DHSID_EA'])
gdf_pov_recent = gdf_pov_recent.dropna(subset=['asset_index'])
gdf_pov_recent.head()

# export as geojson
geojson_filename = 'dhs_recent.geojson'
gdf_pov_recent.to_file(datapath+geojson_filename, driver='GeoJSON')

import geemap.foliumap as geemap
# convert gdf to ee.FeatureCollection
# fc_pov2 = geemap.gdf_to_ee(gdf_pov_recent)
fc_pov = geemap.geojson_to_ee(datapath+geojson_filename)

m = geemap.Map(center=(0, 20), zoom=3)
m.addLayer(fc_pov, {'color': 'blue'}, "DHS Points")
m

fc_pov.first().getInfo()

{'type': 'Feature',
 'geometry': {'type': 'Point', 'coordinates': [90.106474, 21.907454]},
 'id': '0',
 'properties': {'asset_index': -1.3764592156813944,
  'cluster_id': 1,
  'cname': 'BD',
  'n_asset': 29,
  'n_sanitation': 29,
  'n_under5_mort': 11,
  'n_water': 29,
  'n_women_bmi': 25,
  'n_women_edu': 31,
  'sanitation_index': 2.6206896551724137,
  'under5_mort': 0,
  'urban': 'R',
  'water_index': 3,
  'women_bmi': 21.6768,
  'women_edu': 5.67741935483871,
  'year': 2017}}

# convert year into system:time_start property
def add_time_start(feature):
    year = ee.Number(feature.get('year'))
    # Example: January 1st of the year
    millis = ee.Date.fromYMD(year, 1, 1).millis()
    return feature.set('system:time_start', millis)

fc_pov_with_time = fc_pov.map(add_time_start)
fc_pov_with_time.first().getInfo()

{'type': 'Feature',
 'geometry': {'type': 'Point', 'coordinates': [90.106474, 21.907454]},
 'id': '0',
 'properties': {'asset_index': -1.3764592156813944,
  'cluster_id': 1,
  'cname': 'BD',
  'n_asset': 29,
  'n_sanitation': 29,
  'n_under5_mort': 11,
  'n_water': 29,
  'n_women_bmi': 25,
  'n_women_edu': 31,
  'sanitation_index': 2.6206896551724137,
  'system:time_start': 1483228800000,
  'under5_mort': 0,
  'urban': 'R',
  'water_index': 3,
  'women_bmi': 21.6768,
  'women_edu': 5.67741935483871,
  'year': 2017}}

# convert each feature that's 'urban': 'R' to a 5km circle, 'U' to 2km circle
def buffer_by_urban_rural(feature):
    urban_rural = ee.String(feature.get('urban'))
    radius = ee.Number(ee.Algorithms.If(urban_rural.equals('U'), 2000, 5000))  # in meters
    buffered_geom = feature.geometry().buffer(radius)
    return feature.setGeometry(buffered_geom)

fc_pov_buffered = fc_pov_with_time.map(buffer_by_urban_rural)
fc_pov_buffered.first().getInfo()

{'type': 'Feature',
 'geometry': {'type': 'Polygon',
  'coordinates': [[[90.106474, 21.952448329757406],
    [90.0929242060707, 21.950657000633566],
    [90.08045393244645, 21.945425732261054],
    [90.07005647038329, 21.937171280757347],
    [90.06255961071251, 21.92655115693895],
    [90.05855970438274, 21.914411145745614],
    [90.05837431819705, 21.901717849677908],
    [90.06201721475684, 21.889481667043608],
    [90.06919756722291, 21.87867636083684],
    [90.07934337455768, 21.870161621422255],
    [90.0916471309303, 21.86461476372806],
    [90.10513007139963, 21.86247695575551],
    [90.11871989013373, 21.863918214229486],
    [90.13133580443927, 21.868823918796405],
    [90.14197428403541, 21.87680390350954],
    [90.14978871498823, 21.88722341192708],
    [90.15415672461073, 21.89925348346682],
    [90.15472982895463, 21.911936803845133],
    [90.15146141816709, 21.924263819925606],
    [90.14461077571728, 21.93525308761795],
    [90.13472271517368, 21.94402946125434],
    [90.12258436906197, 21.94989387999793],
    [90.10916252021738, 21.952379157335653],
    [90.106474, 21.952448329757406]]]},
 'id': '0',
 'properties': {'asset_index': -1.3764592156813944,
  'cluster_id': 1,
  'cname': 'BD',
  'n_asset': 29,
  'n_sanitation': 29,
  'n_under5_mort': 11,
  'n_water': 29,
  'n_women_bmi': 25,
  'n_women_edu': 31,
  'sanitation_index': 2.6206896551724137,
  'system:time_start': 1483228800000,
  'under5_mort': 0,
  'urban': 'R',
  'water_index': 3,
  'women_bmi': 21.6768,
  'women_edu': 5.67741935483871,
  'year': 2017}}

# try to match a single feature to an image and get embedding values
ft = fc_pov_buffered.first()
year = ee.Number(ft.get('year'))
image = embeddings.filter(ee.Filter.calendarRange(year, year, 'year')).filterBounds(ft.geometry()).first()

# reduce the image over the feature geometry to get mean embedding values
embedding_values = image.reduceRegion(
    reducer=ee.Reducer.mean(),
    geometry=ft.geometry(),
    scale=2000
)
print(embedding_values.getInfo())

# variation by scale
# 2000m
# {'A00': 0.03583230975099487, 'A01': -0.05868585758724169, 'A02': 0.04828265352486806, 'A03': -0.03910224339290082, 'A04': -0.07338382590112695, 'A05': 0.10040952031436462, 'A06': 0.07469091558191907, 'A07': 0.02286804026423404, 'A08': -0.07577565072374762, 'A09': 0.3013911482596604, 'A10': 0.07351857677117193, 'A11': 0.008769017410885923, 'A12': -0.2795098538524144, 'A13': -0.04067630082335964, 'A14': 0.007487442392286684, 'A15': 0.13000420667375687, 'A16': -0.15363397943847773, 'A17': 0.029954550447630037, 'A18': -0.1459742881109663, 'A19': 0.03134522436425551, 'A20': -0.27873316706361695, 'A21': 0.2468679129405773, 'A22': -0.027948279133400245, 'A23': 0.060070914283717046, 'A24': 0.09891742436725136, 'A25': 0.15968814441997836, 'A26': 0.054844827414031565, 'A27': -0.04544374790914585, 'A28': -0.06753590027811483, 'A29': 0.10958732155963993, 'A30': 0.0851869535693065, 'A31': 0.08353888614269238, 'A32': -0.12098027981245973, 'A33': -0.032616014320166566, 'A34': 0.18979035286128712, 'A35': 0.16240413277610513, 'A36': -0.08705842408264557, 'A37': 0.01165832821542164, 'A38': 0.20790114441498528, 'A39': 0.0999573340922822, 'A40': 0.09392022049461496, 'A41': 0.051902702257373534, 'A42': -0.07304564428266852, 'A43': 0.24091693005187814, 'A44': -0.022394620949984276, 'A45': 0.12302783145343696, 'A46': 0.024674800401444003, 'A47': 0.1059101644222752, 'A48': -0.044020993424107605, 'A49': 0.13290897107506103, 'A50': 0.015047683957718562, 'A51': 0.08655386040334136, 'A52': -0.003795593103551581, 'A53': -0.044226383958217874, 'A54': 0.2885844979703111, 'A55': -0.12836339170249206, 'A56': 0.020580708219116527, 'A57': -0.03316391797360656, 'A58': -0.1001967275323677, 'A59': -0.031444636678200695, 'A60': 0.028908336953319652, 'A61': -0.089986581085197, 'A62': 0.015343162220324849, 'A63': 0.06701353625229059}
# 1000m
# {'A00': 0.03481271163490991, 'A01': -0.05594536681821433, 'A02': 0.04529522176786921, 'A03': -0.03688662679341079, 'A04': -0.06889645994742906, 'A05': 0.09973965045305627, 'A06': 0.06984619295545244, 'A07': 0.017960080867170068, 'A08': -0.07866600104232897, 'A09': 0.2985257121331164, 'A10': 0.07821992300493785, 'A11': 0.01371763274708313, 'A12': -0.2674301369259616, 'A13': -0.04385100762259716, 'A14': 0.009898687625467278, 'A15': 0.12622457591595196, 'A16': -0.14892357520894492, 'A17': 0.026366437637962818, 'A18': -0.1419214468725958, 'A19': 0.026061783565433146, 'A20': -0.27179187600943167, 'A21': 0.24356622577906728, 'A22': -0.02884406061119342, 'A23': 0.06431191842868295, 'A24': 0.08769955913574758, 'A25': 0.15106016007008471, 'A26': 0.046134445415487085, 'A27': -0.042536755598101675, 'A28': -0.05821022347385746, 'A29': 0.10484388480792214, 'A30': 0.08176645165786516, 'A31': 0.08963079581467584, 'A32': -0.1074485966585588, 'A33': -0.029586378445024732, 'A34': 0.18277309659737995, 'A35': 0.15923474291330025, 'A36': -0.0781525838927043, 'A37': 0.008330587817771077, 'A38': 0.20084012250896496, 'A39': 0.10949589618237042, 'A40': 0.0926602340490974, 'A41': 0.052373405447695115, 'A42': -0.06530570264682176, 'A43': 0.23214762042704062, 'A44': -0.020552241344816424, 'A45': 0.11306330954794457, 'A46': 0.018600745654126984, 'A47': 0.10697815986778252, 'A48': -0.041070623244192556, 'A49': 0.12812344424757047, 'A50': 0.013616496448203865, 'A51': 0.0861259058435735, 'A52': -0.007594595477470572, 'A53': -0.04466483590789988, 'A54': 0.2758680277762164, 'A55': -0.12936442389670752, 'A56': 0.020402371974468207, 'A57': -0.03553647946089175, 'A58': -0.09930380153561709, 'A59': -0.03218656096835462, 'A60': 0.014419488590307379, 'A61': -0.08894858262114624, 'A62': 0.016468176485238507, 'A63': 0.07034321736446027}
# 500m
# {'A00': 0.036578499860688944, 'A01': -0.05791379288875197, 'A02': 0.04448329356351574, 'A03': -0.0343000014008938, 'A04': -0.06875603590646395, 'A05': 0.09509153206412355, 'A06': 0.06585293728509904, 'A07': 0.020320445110647265, 'A08': -0.07914279932819365, 'A09': 0.2901480456753633, 'A10': 0.07452305715490945, 'A11': 0.010431574900341982, 'A12': -0.2628742876844314, 'A13': -0.042265764335423735, 'A14': 0.007318431714989723, 'A15': 0.12141540469486203, 'A16': -0.14045205518898826, 'A17': 0.022443769680611802, 'A18': -0.13745461726803895, 'A19': 0.029234255121434145, 'A20': -0.26109465839205404, 'A21': 0.23511839887181343, 'A22': -0.02429846664394106, 'A23': 0.0601555069912382, 'A24': 0.0854524583350844, 'A25': 0.14938748176892397, 'A26': 0.047655879784635875, 'A27': -0.04321364641752549, 'A28': -0.05637120649641138, 'A29': 0.10501868558807191, 'A30': 0.07863979596760505, 'A31': 0.08631648213782642, 'A32': -0.10189612761830945, 'A33': -0.030231625332517695, 'A34': 0.1758482403995971, 'A35': 0.15422565441195907, 'A36': -0.07595117418246171, 'A37': 0.006158485447048553, 'A38': 0.19520601465957518, 'A39': 0.10328082472172805, 'A40': 0.08742171961266847, 'A41': 0.05080746427331752, 'A42': -0.06252248823638372, 'A43': 0.22901237689645995, 'A44': -0.019962162637540554, 'A45': 0.10905791372673548, 'A46': 0.016408865634052323, 'A47': 0.10741201531021245, 'A48': -0.041191549653123063, 'A49': 0.12528431294721573, 'A50': 0.013151910585620295, 'A51': 0.08057226121376548, 'A52': -0.0068712080529600116, 'A53': -0.0423755173578521, 'A54': 0.2694740126422878, 'A55': -0.12730421886941645, 'A56': 0.01906441465210361, 'A57': -0.03246198519099633, 'A58': -0.09578762839580532, 'A59': -0.02889682573037154, 'A60': 0.0178299019218706, 'A61': -0.08703953244392144, 'A62': 0.01573998477695436, 'A63': 0.06945301324467242}
# 100m
# {'A00': 0.036108371550511546, 'A01': -0.05598663937289979, 'A02': 0.043299633043500464, 'A03': -0.03415575004011105, 'A04': -0.06679075946831117, 'A05': 0.09131783050829273, 'A06': 0.06257923929975473, 'A07': 0.020500911411077058, 'A08': -0.07652376152089868, 'A09': 0.2821571347423175, 'A10': 0.07156058929043027, 'A11': 0.012454139284957134, 'A12': -0.2543412604903599, 'A13': -0.04157583911902149, 'A14': 0.006021400708850217, 'A15': 0.11760638565229417, 'A16': -0.137730305253919, 'A17': 0.022482345667180378, 'A18': -0.13151265130878523, 'A19': 0.027563267050601477, 'A20': -0.2555571770963498, 'A21': 0.2285734780497037, 'A22': -0.02228345024448541, 'A23': 0.0578045007858795, 'A24': 0.08235074609566148, 'A25': 0.14517263984980924, 'A26': 0.04477276708312992, 'A27': -0.03996105224599208, 'A28': -0.05447370567497873, 'A29': 0.10107459658259121, 'A30': 0.07657410966232464, 'A31': 0.08434162491771943, 'A32': -0.09887445988996911, 'A33': -0.02880841631225394, 'A34': 0.17124900463217377, 'A35': 0.1484415366340958, 'A36': -0.07305430031887823, 'A37': 0.00526643711328007, 'A38': 0.1892287800182653, 'A39': 0.1004151176055086, 'A40': 0.08622084653387635, 'A41': 0.050142151079635676, 'A42': -0.059993750508902634, 'A43': 0.22220614785034754, 'A44': -0.018454189699598156, 'A45': 0.10475215409413682, 'A46': 0.015136518183455072, 'A47': 0.10324870399316437, 'A48': -0.03868878164381196, 'A49': 0.1221201897621234, 'A50': 0.012285961220702954, 'A51': 0.07752037450728759, 'A52': -0.005474941785323169, 'A53': -0.04089682071138646, 'A54': 0.2597857393968169, 'A55': -0.12361047372019358, 'A56': 0.018547775868132582, 'A57': -0.03239493288670129, 'A58': -0.09351792686266693, 'A59': -0.026190862722283822, 'A60': 0.016942375481453, 'A61': -0.08429377435506288, 'A62': 0.014623150598999105, 'A63': 0.0670397712742539}
# 50m
# {'A00': 0.036085537499694086, 'A01': -0.05548275140971035, 'A02': 0.04307754055001857, 'A03': -0.03378782864982446, 'A04': -0.06623116779211374, 'A05': 0.09026758445166103, 'A06': 0.06202361110438186, 'A07': 0.020543443925789388, 'A08': -0.07619312837165601, 'A09': 0.28010445044453613, 'A10': 0.0706675501159378, 'A11': 0.012450605493897681, 'A12': -0.25261915685658015, 'A13': -0.04130319173392991, 'A14': 0.00582009602507959, 'A15': 0.11642150569900925, 'A16': -0.13633036225716513, 'A17': 0.022299617433523534, 'A18': -0.1302603266135699, 'A19': 0.027756638351513457, 'A20': -0.2536279698605394, 'A21': 0.2268927985928222, 'A22': -0.021357176300377537, 'A23': 0.05709434307358947, 'A24': 0.08199905790337145, 'A25': 0.14436426943741218, 'A26': 0.04452054770743444, 'A27': -0.039583517797359684, 'A28': -0.05399284723452823, 'A29': 0.10051866812468549, 'A30': 0.07610725228963093, 'A31': 0.08377650825287228, 'A32': -0.09777230452399267, 'A33': -0.028709391330874013, 'A34': 0.1700587790217618, 'A35': 0.14700119097133799, 'A36': -0.0723678666325534, 'A37': 0.0054338270198577305, 'A38': 0.1877186430029593, 'A39': 0.09907638389015194, 'A40': 0.08544953756870699, 'A41': 0.04945820697989388, 'A42': -0.05964563057358378, 'A43': 0.22116912446720544, 'A44': -0.017822908234319958, 'A45': 0.10380164111226105, 'A46': 0.014838540039380775, 'A47': 0.10240402856570753, 'A48': -0.03808079869820352, 'A49': 0.12128797358375132, 'A50': 0.012060007495121322, 'A51': 0.0767023661323268, 'A52': -0.005346906692551554, 'A53': -0.040285800382936485, 'A54': 0.25779437547062617, 'A55': -0.1230613269578868, 'A56': 0.01834557117862811, 'A57': -0.032118270440714115, 'A58': -0.0928466134857465, 'A59': -0.026086050494558373, 'A60': 0.01673587065988864, 'A61': -0.08363121617720201, 'A62': 0.014011153684349803, 'A63': 0.06651764279839907}
# 30m
# {'A00': 0.03582532968782185, 'A01': -0.055315842829177446, 'A02': 0.042864198393999894, 'A03': -0.03366780798138651, 'A04': -0.06603571824170347, 'A05': 0.08990780174754444, 'A06': 0.06178646016948296, 'A07': 0.020425571431694007, 'A08': -0.07585662388832703, 'A09': 0.278968989746327, 'A10': 0.07041308038274256, 'A11': 0.01232932151981369, 'A12': -0.2516425454665451, 'A13': -0.041180908770785694, 'A14': 0.00582721784566818, 'A15': 0.11610445852116824, 'A16': -0.1358510666519013, 'A17': 0.022193952004846126, 'A18': -0.1297438089264448, 'A19': 0.02736845772855256, 'A20': -0.2526084909199134, 'A21': 0.22607330052897404, 'A22': -0.02134302808770591, 'A23': 0.05702630223253058, 'A24': 0.08160845387138405, 'A25': 0.1437285675621256, 'A26': 0.04435213231894256, 'A27': -0.039568695560252526, 'A28': -0.05381449031072861, 'A29': 0.10009436852178387, 'A30': 0.07576930525937114, 'A31': 0.08354698260976318, 'A32': -0.09735432737414249, 'A33': -0.02854791420522347, 'A34': 0.16936164310877613, 'A35': 0.14643584745282612, 'A36': -0.07206019154390104, 'A37': 0.005432699554312775, 'A38': 0.18708694740027834, 'A39': 0.09878732900239752, 'A40': 0.08530297445075853, 'A41': 0.049280546985173264, 'A42': -0.059354122583850796, 'A43': 0.22024356757464497, 'A44': -0.01781490245221123, 'A45': 0.10332777962700819, 'A46': 0.014750702669785442, 'A47': 0.10211986425074568, 'A48': -0.03803568258908585, 'A49': 0.12083642817821529, 'A50': 0.012097864540563977, 'A51': 0.07643123773200772, 'A52': -0.005415651134494881, 'A53': -0.04022817559797119, 'A54': 0.2567906522961513, 'A55': -0.12244904729733737, 'A56': 0.018312240728518878, 'A57': -0.0319323686104835, 'A58': -0.09252511474916007, 'A59': -0.025924715697636942, 'A60': 0.016777518398456016, 'A61': -0.08337113305765613, 'A62': 0.01400716830835664, 'A63': 0.06634044682731473}
# 20m, 10m
# Too many pixels

{'A00': 0.0353916825197102, 'A01': -0.06388765310045588, 'A02': 0.05733827399052314, 'A03': -0.029008385885548518, 'A04': -0.0837120837639869, 'A05': 0.10796275907867602, 'A06': 0.08387006496003037, 'A07': 0.009033363791149256, 'A08': -0.06164016587026968, 'A09': 0.2844537315817593, 'A10': 0.0928449846961958, 'A11': 0.027656058858481002, 'A12': -0.2959449662217829, 'A13': -0.0313123698677332, 'A14': 0.0042906699221578115, 'A15': 0.16307921029374317, 'A16': -0.13962037577954536, 'A17': 0.038254729699366385, 'A18': -0.1507557158335705, 'A19': 0.023255104180709713, 'A20': -0.2704796731526835, 'A21': 0.2726703016322394, 'A22': -0.011094259450660839, 'A23': 0.05054512000878783, 'A24': 0.08309041976862047, 'A25': 0.13486919366677153, 'A26': 0.07080049131952247, 'A27': -0.04999968793221388, 'A28': -0.08533899299470234, 'A29': 0.11306182187670079, 'A30': 0.09800001997233831, 'A31': 0.06080019173444781, 'A32': -0.1156039010969807, 'A33': -0.031866851910104514, 'A34': 0.18670316611493082, 'A35': 0.16319643543691992, 'A36': -0.092464711374746, 'A37': 0.013665860283507344, 'A38': 0.20514859419703715, 'A39': 0.09401287966166857, 'A40': 0.07403859404724457, 'A41': 0.05515021694952493, 'A42': -0.07633550033204012, 'A43': 0.24366849413562214, 'A44': -0.030649026098853088, 'A45': 0.11144724556489262, 'A46': 0.029720874089386205, 'A47': 0.09619524458624805, 'A48': -0.041384994282918156, 'A49': 0.12352454350724247, 'A50': 0.020451774292604745, 'A51': 0.07213602909969694, 'A52': -0.004783874334047347, 'A53': -0.022784281270440437, 'A54': 0.2764352871273287, 'A55': -0.12396956465295564, 'A56': 0.02669316746306366, 'A57': -0.02784469759383254, 'A58': -0.10130012432780601, 'A59': -0.038907450680807094, 'A60': 0.019363843576646347, 'A61': -0.11186823749107486, 'A62': 0.023997326203208554, 'A63': 0.07705549064545604}

# loop over all features
def match_image(feature):
    year = ee.Number(feature.get('year'))
    geo = feature.geometry()
    image = embeddings.filter(ee.Filter.calendarRange(year, year, 'year')).filterBounds(geo).first()
    return feature.set('embedding', image.reduceRegion(
        reducer=ee.Reducer.mean(),
        geometry=feature.geometry(),
        scale=100 # 1km scale should be fine since we're using buffered geometries
    ))
fc_matched = fc_pov_buffered.map(match_image)
fc_matched.first().getInfo()

{'type': 'Feature',
 'geometry': {'type': 'Polygon',
  'coordinates': [[[90.106474, 21.952448329757406],
    [90.0929242060707, 21.950657000633566],
    [90.08045393244645, 21.945425732261054],
    [90.07005647038329, 21.937171280757347],
    [90.06255961071251, 21.92655115693895],
    [90.05855970438274, 21.914411145745614],
    [90.05837431819705, 21.901717849677908],
    [90.06201721475684, 21.889481667043608],
    [90.06919756722291, 21.87867636083684],
    [90.07934337455768, 21.870161621422255],
    [90.0916471309303, 21.86461476372806],
    [90.10513007139963, 21.86247695575551],
    [90.11871989013373, 21.863918214229486],
    [90.13133580443927, 21.868823918796405],
    [90.14197428403541, 21.87680390350954],
    [90.14978871498823, 21.88722341192708],
    [90.15415672461073, 21.89925348346682],
    [90.15472982895463, 21.911936803845133],
    [90.15146141816709, 21.924263819925606],
    [90.14461077571728, 21.93525308761795],
    [90.13472271517368, 21.94402946125434],
    [90.12258436906197, 21.94989387999793],
    [90.10916252021738, 21.952379157335653],
    [90.106474, 21.952448329757406]]]},
 'id': '0',
 'properties': {'asset_index': -1.3764592156813944,
  'cluster_id': 1,
  'cname': 'BD',
  'embedding': {'A00': 0.03512267304839023,
   'A01': -0.06051567920187288,
   'A02': 0.0498054539123987,
   'A03': -0.02476042743468831,
   'A04': -0.07595159935170834,
   'A05': 0.09790382517143945,
   'A06': 0.07091386308256901,
   'A07': 0.00942007317121371,
   'A08': -0.06467983084361521,
   'A09': 0.2656252551294257,
   'A10': 0.08752418262976407,
   'A11': 0.027792575271735134,
   'A12': -0.267479080923437,
   'A13': -0.0333451979101914,
   'A14': 0.003782039831609506,
   'A15': 0.14569239497725403,
   'A16': -0.12477636759863443,
   'A17': 0.029549491847229676,
   'A18': -0.1360486035137347,
   'A19': 0.020289389027185536,
   'A20': -0.24712412213539078,
   'A21': 0.25123450055734764,
   'A22': -0.007869924015180156,
   'A23': 0.048602323628590044,
   'A24': 0.06945571227453161,
   'A25': 0.12419264768083987,
   'A26': 0.06027881176102642,
   'A27': -0.04539175595179422,
   'A28': -0.07020534621012917,
   'A29': 0.10510822999255709,
   'A30': 0.08641761227757008,
   'A31': 0.06530435825341482,
   'A32': -0.09588435975931764,
   'A33': -0.02828237853371025,
   'A34': 0.1677537277291741,
   'A35': 0.1483103436704114,
   'A36': -0.07843787388571281,
   'A37': 0.007381161268367454,
   'A38': 0.18634500581504143,
   'A39': 0.09417499528702095,
   'A40': 0.06871735029602988,
   'A41': 0.05306296214462316,
   'A42': -0.06289122309580149,
   'A43': 0.22510335142221372,
   'A44': -0.024837933924496534,
   'A45': 0.09568762573219497,
   'A46': 0.01964902216289105,
   'A47': 0.09381854906106554,
   'A48': -0.036308987853938816,
   'A49': 0.11243040581651993,
   'A50': 0.01793218254002071,
   'A51': 0.06493703034914518,
   'A52': -0.005200301060674401,
   'A53': -0.021920089868420343,
   'A54': 0.24780010368918584,
   'A55': -0.11973047397696729,
   'A56': 0.02415448232466486,
   'A57': -0.02630868754057958,
   'A58': -0.09364085789318309,
   'A59': -0.03237857382825309,
   'A60': 0.009029349892007025,
   'A61': -0.10380138459354092,
   'A62': 0.022597064751584937,
   'A63': 0.07496425062304103},
  'n_asset': 29,
  'n_sanitation': 29,
  'n_under5_mort': 11,
  'n_water': 29,
  'n_women_bmi': 25,
  'n_women_edu': 31,
  'sanitation_index': 2.6206896551724137,
  'system:time_start': 1483228800000,
  'under5_mort': 0,
  'urban': 'R',
  'water_index': 3,
  'women_bmi': 21.6768,
  'women_edu': 5.67741935483871,
  'year': 2017}}

# Server-side export; no client-side .getInfo()/.toList()
task = ee.batch.Export.table.toDrive(
    collection = fc_matched,
    description = 'fc_embeddings_all',
    fileFormat = 'CSV',
    fileNamePrefix = 'fc_embeddings_all',   # produces fc_embeddings_all.csv
    selectors = None  # or a list of column names to control order/size
)
# uncomment this line to start the export, takes about 10 minutes
# task.start()
# https://console.cloud.google.com/earth-engine/tasks?project=your-project-id

# visualize embedding values for A01, A09, A16
gdf_embeds = gpd.read_file('data/fc_embeddings_all.csv')
# keep just cluster_id and embedding columns
gdf_embeds = gdf_embeds[['cluster_id', 'embedding', 'year', 'cname']]
# gdf_embeds.dtypes
# # convert cluster_id to int32
# gdf_embeds['cluster_id'] = gdf_embeds['cluster_id'].astype('int32')
# concatenate cname and year and cluster_id to make unique id
gdf_embeds['unique_id'] = gdf_embeds['cname'] + '_' + gdf_embeds['year'].astype(str) + '_' + gdf_embeds['cluster_id'].astype(str)
# drop cname, year, cluster_id columns
gdf_embeds = gdf_embeds.drop(columns=['cname', 'year', 'cluster_id'])
# # expand embedding dictionary into separate columns
# # currently formatted "{A00=0.036108371550511546, A01=-0.055986639372...}"
# gdf_embeds = pd.concat([gdf_embeds.drop(columns=['embedding']), gdf_embeds['embedding'].str.strip('{}').str.split(', ', expand=True)], axis=1)
# # split each column on '=' and keep second part
# for col in gdf_embeds.columns[4:]:
#     gdf_embeds[col] = gdf_embeds[col].str.split('=').str[1].astype(float)
# gdf_embeds.head()

# read in previous gdf to get other columns
gdf_pov = gpd.read_file('data/dhs_recent.geojson')
# create unique id in gdf_pov
gdf_pov['unique_id'] = gdf_pov['cname'] + '_' + gdf_pov['year'].astype(str) + '_' + gdf_pov['cluster_id'].astype(str)

# merge gdf_embeds with gdf_pov on unique_id
gdf_merged = gdf_pov.merge(gdf_embeds, on='unique_id', how='inner', suffixes=('_pov', '_embed'))
gdf_merged

# export
gdf_merged.to_file('data/dhs_with_embeddings.geojson', driver='GeoJSON')

import re

# read
gdf = gpd.read_file('data/dhs_with_embeddings.geojson')

# pull out "A00=0.123" pairs into rows, then pivot to columns
kv = gdf['embedding'].str.extractall(
    r'(?P<key>[A-Z]\d{2})=(?P<val>[+-]?\d+(?:\.\d+)?(?:[Ee][+-]?\d+)?)'
)

wide = (kv.reset_index()
          .pivot(index='level_0', columns='key', values='val')
          .astype(float))

# merge back (keep geometry & CRS)
gdf_out = pd.concat([gdf.drop(columns=['embedding']).reset_index(drop=True),
                     wide.reset_index(drop=True)],
                    axis=1)
# round embedding values to 6 decimal places
embedding_cols = [col for col in gdf_out.columns if re.match(r'A\d{2}', col)]
gdf_out[embedding_cols] = gdf_out[embedding_cols].round(6)

gdf_out = gpd.GeoDataFrame(gdf_out, geometry='geometry', crs=gdf.crs)

# rexport
gdf_out.to_file('data/dhs_with_embeddings_wide.geojson', driver='GeoJSON')

gdf_out.head()

from lonboard import Map, ScatterplotLayer
from lonboard.colormap import apply_continuous_cmap
from palettable.colorbrewer.diverging import PuOr_5

gdf = gpd.read_file('data/dhs_with_embeddings_wide.geojson')
normalized_asset_index = (gdf['asset_index'] - gdf['asset_index'].min()) / (gdf['asset_index'].max() - gdf['asset_index'].min())
layer = ScatterplotLayer.from_geopandas(
    gdf,
    get_fill_color=apply_continuous_cmap(normalized_asset_index, PuOr_5.mpl_colormap),
    get_radius=20000
)
m = Map(layer, view_state={
        "longitude": 50,
        "latitude": 10,
        "zoom": 2,
    },
    basemap_style="https://basemaps.cartocdn.com/gl/dark-matter-gl-style/style.json"
    )
m

Map(basemap_style='https://basemaps.cartocdn.com/gl/dark-matter-gl-style/style.json', custom_attribution='', l…

import geopandas as gpd
import pandas as pd

datapath = "data/"
filename = "dhs_with_embeddings_wide.geojson"
gdf = gpd.read_file(datapath+filename)
gdf.head()

from sklearn.model_selection import train_test_split
from sklearn.linear_model import Ridge
from sklearn.metrics import r2_score

# define features and target
embedding_cols = [col for col in gdf.columns if col.startswith('A') and len(col) == 3]
X = gdf[embedding_cols]
y = gdf['asset_index']

# look for NaNs
print("Number of NaNs in X:", X.isna().sum().sum())
print("Number of NaNs in y:", y.isna().sum())

# drop rows with NaNs
mask = X.notna().all(axis=1) & y.notna()
X = X[mask]
y = y[mask]

# look for NaNs
print("Number of NaNs in X is now:", X.isna().sum().sum())
print("Number of NaNs in y is now:", y.isna().sum())

Number of NaNs in X: 320
Number of NaNs in y: 0
Number of NaNs in X is now: 0
Number of NaNs in y is now: 0

# split into train and test sets
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42)
# train ridge regression model
alpha = [0.0001, 0.001, 0.01, 0.1, 1.0, 10.0, 100.0]

# loop over alpha values and print R^2 for each
for a in alpha:
    model = Ridge(alpha=a)
    model.fit(X_train, y_train)
    # predict on test set
    y_pred = model.predict(X_test)
    # evaluate with R^2
    r2 = r2_score(y_test, y_pred)
    print(f'Alpha: {a}, R^2: {r2:.4f}')

Alpha: 0.0001, R^2: 0.3633
Alpha: 0.001, R^2: 0.3633
Alpha: 0.01, R^2: 0.3633
Alpha: 0.1, R^2: 0.3639
Alpha: 1.0, R^2: 0.3637
Alpha: 10.0, R^2: 0.3523
Alpha: 100.0, R^2: 0.3090

alpha = 0.1
model = Ridge(alpha=alpha)
model.fit(X_train, y_train)
# predict on test set
y_pred = model.predict(X_test)
# evaluate with R^2
r2 = r2_score(y_test, y_pred)
print(f'Final model - Alpha: {alpha}, R^2: {r2:.4f}')

# look at coefficients
coef = pd.Series(model.coef_, index=X.columns)
print(coef)

# plot y vs y_pred
import matplotlib.pyplot as plt


# color by difference from y=y_pred line
plt.scatter(y_test, y_pred, c=(y_test - y_pred), cmap='coolwarm', vmin=-max(abs(y_test - y_pred)), vmax=max(abs(y_test - y_pred)))
plt.xlabel('True Values')
plt.ylabel('Predictions')
plt.title('True vs Predicted Values Colored by Error')
plt.colorbar(label='Error (True - Predicted)')
plt.plot([y_test.min(), y_test.max()], [y_test.min(), y_test.max()], 'k--', lw=2)
plt.show()

Final model - Alpha: 0.1, R^2: 0.3639
A00   -1.800982
A01   -0.567001
A02    3.418318
A03   -2.960077
A04    3.029826
         ...
A59   -0.841461
A60    3.957573
A61    0.076172
A62    3.447085
A63   -0.426150
Length: 64, dtype: float64

# run a prediction on the full dataset, plot the errors on a map with lat lon using lonboard
gdf_full = gdf[mask].copy()
gdf_full['predicted_asset_index'] = model.predict(X)
gdf_full['error'] = gdf_full['asset_index'] - gdf_full['predicted_asset_index']
gdf_full.head()
gdf_full['abs_error'] = gdf_full['error'].abs()
import numpy as np
gdf_full['normalized_abs_error'] = (gdf_full['abs_error'] - gdf_full['abs_error'].min()) / (gdf_full['abs_error'].max() - gdf_full['abs_error'].min())

from lonboard import Map, ScatterplotLayer
from lonboard.colormap import apply_continuous_cmap
from palettable.colorbrewer.diverging import RdBu_11

layer = ScatterplotLayer.from_geopandas(
    gdf_full,
    get_fill_color=apply_continuous_cmap(gdf_full['normalized_abs_error'], RdBu_11.mpl_colormap),
    get_radius=10000
)
m = Map(layer, view_state={
        "longitude": 50,
        "latitude": 10,
        "zoom": 2,
    },
    basemap_style="https://basemaps.cartocdn.com/gl/dark-matter-gl-style/style.json"
    )
m

Map(basemap_style='https://basemaps.cartocdn.com/gl/dark-matter-gl-style/style.json', custom_attribution='', l…

# supress warnings
import warnings
warnings.filterwarnings("ignore")

# export to HTML for webpage
import os
os.system('jupyter nbconvert --to html pt4-alphaearth.ipynb --HTMLExporter.theme=dark')

[NbConvertApp] Converting notebook pt4-alphaearth.ipynb to html
[NbConvertApp] Writing 1377468 bytes to pt4-alphaearth.html

0

	country	cluster_id	year.x	year.y	lat	lon	lsms_id.x	lsms_id.y	diff_of_index	index_of_diff	asset_index.x	asset_index.y	n
0	et	1010201403	2011	2015	14.288590	38.210252	et_01010201403_2011	et_01010201403_2015	0.293512	0.289872	-2.324146	-2.030634	5
1	et	1010300106	2011	2015	14.109761	38.473835	et_01010300106_2011	et_01010300106_2015	0.402204	0.324878	0.946298	1.348502	6
2	et	1010301804	2011	2015	13.844084	38.480325	et_01010301804_2011	et_01010301804_2015	0.269226	0.211552	-2.194513	-1.925287	5
3	et	1010600402	2011	2015	13.642517	38.119182	et_01010600402_2011	et_01010600402_2015	1.290143	1.007329	-2.469920	-1.179777	4
4	et	1020100207	2011	2015	14.283468	38.573016	et_01020100207_2011	et_01020100207_2015	-0.948477	-0.798657	-1.117476	-2.065952	4

	DHSID_EA	cname	year	lat	lon	n_asset	asset_index	n_water	water_index	n_sanitation	...	under5_mort	n_under5_mort	women_edu	women_bmi	n_women_edu	n_women_bmi	cluster_id	adm1fips	adm1dhs	urban
0	AL-2008-5#-00000001	AL	2008	40.822652	19.838321	18.0	2.430596	18.0	3.444444	18.0	...	0.0	6.0	9.500000	24.365000	18.0	18.0	1	NaN	9999	R
1	AL-2008-5#-00000002	AL	2008	40.696846	20.007555	20.0	2.867678	20.0	4.700000	20.0	...	NaN	NaN	8.600000	23.104000	20.0	20.0	2	NaN	9999	R
2	AL-2008-5#-00000003	AL	2008	40.750037	19.974262	18.0	2.909049	18.0	4.500000	18.0	...	NaN	NaN	9.666667	22.387778	18.0	18.0	3	NaN	9999	R
3	AL-2008-5#-00000004	AL	2008	40.798931	19.863338	19.0	2.881122	19.0	4.947368	19.0	...	NaN	NaN	9.952381	27.084500	21.0	20.0	4	NaN	9999	R
4	AL-2008-5#-00000005	AL	2008	40.746123	19.843885	19.0	2.546830	19.0	4.684211	19.0	...	0.0	6.0	8.937500	24.523125	16.0	16.0	5	NaN	9999	R

	DHSID_EA	cname	year	lat	lon	n_asset	asset_index	n_water	water_index	n_sanitation	...	n_under5_mort	women_edu	women_bmi	n_women_edu	n_women_bmi	cluster_id	adm1fips	adm1dhs	urban	geometry
0	AL-2008-5#-00000001	AL	2008	40.822652	19.838321	18.0	2.430596	18.0	3.444444	18.0	...	6.0	9.500000	24.365000	18.0	18.0	1	NaN	9999	R	POINT (19.83832 40.82265)
1	AL-2008-5#-00000002	AL	2008	40.696846	20.007555	20.0	2.867678	20.0	4.700000	20.0	...	NaN	8.600000	23.104000	20.0	20.0	2	NaN	9999	R	POINT (20.00756 40.69685)
2	AL-2008-5#-00000003	AL	2008	40.750037	19.974262	18.0	2.909049	18.0	4.500000	18.0	...	NaN	9.666667	22.387778	18.0	18.0	3	NaN	9999	R	POINT (19.97426 40.75004)
3	AL-2008-5#-00000004	AL	2008	40.798931	19.863338	19.0	2.881122	19.0	4.947368	19.0	...	NaN	9.952381	27.084500	21.0	20.0	4	NaN	9999	R	POINT (19.86334 40.79893)
4	AL-2008-5#-00000005	AL	2008	40.746123	19.843885	19.0	2.546830	19.0	4.684211	19.0	...	6.0	8.937500	24.523125	16.0	16.0	5	NaN	9999	R	POINT (19.84388 40.74612)

	cname	year	n_asset	asset_index	n_water	water_index	n_sanitation	sanitation_index	n_under5_mort	women_edu	women_bmi	n_women_edu	n_women_bmi	cluster_id	urban	geometry
5010	BD	2017	29.0	-1.376459	29.0	3.0	29.0	2.620690	11.0	5.677419	21.676800	31.0	25.0	1	R	POINT (90.10647 21.90745)
5011	BD	2017	30.0	-1.451064	30.0	3.0	30.0	2.833333	17.0	4.888889	22.983889	27.0	18.0	2	R	POINT (90.29871 22.17195)
5012	BD	2017	29.0	-1.008796	29.0	3.0	29.0	2.965517	15.0	5.478261	22.374783	23.0	23.0	3	R	POINT (90.18748 22.16715)
5013	BD	2017	30.0	-1.266641	30.0	3.0	30.0	2.800000	12.0	6.794118	23.681875	34.0	32.0	4	R	POINT (90.12206 22.19562)
5014	BD	2017	29.0	-1.265830	29.0	3.0	29.0	2.655172	14.0	5.931034	23.154615	29.0	26.0	5	R	POINT (90.17927 22.3489)

	cname	year	n_asset	asset_index	n_water	water_index	n_sanitation	sanitation_index	n_under5_mort	...	A54	A55	A56	A57	A58	A59	A60	A61	A62	A63
0	BD	2017	29.0	-1.376459	29.0	3.0	29.0	2.620690	11.0	...	0.259786	-0.123610	0.018548	-0.032395	-0.093518	-0.026191	0.016942	-0.084294	0.014623	0.067040
1	BD	2017	30.0	-1.451064	30.0	3.0	30.0	2.833333	17.0	...	0.259563	-0.136118	0.021275	-0.080617	-0.089354	0.004067	-0.002180	-0.101401	-0.000191	0.056456
2	BD	2017	29.0	-1.008796	29.0	3.0	29.0	2.965517	15.0	...	0.260022	-0.127344	0.013086	-0.087429	-0.083592	0.017552	0.013901	-0.118372	0.012307	0.047914
3	BD	2017	30.0	-1.266641	30.0	3.0	30.0	2.800000	12.0	...	0.248373	-0.139922	-0.004072	-0.086116	-0.071577	0.032169	0.010431	-0.129695	0.014108	0.041460
4	BD	2017	29.0	-1.265830	29.0	3.0	29.0	2.655172	14.0	...	0.244225	-0.134239	0.003749	-0.062401	-0.076553	0.023945	0.008355	-0.118996	0.024387	0.058478

Wealth Mapping with Alpha Earth Embeddings¶

Setup¶

Sustain Bench - Poverty Over Time¶

Sustain Bench Poverty Over Space¶

Match DHS Points to GEE Embeddings¶

Predict Sustain Bench Indicators with Alpha Earth Embeddings¶

Convert Notebook to HTML¶
